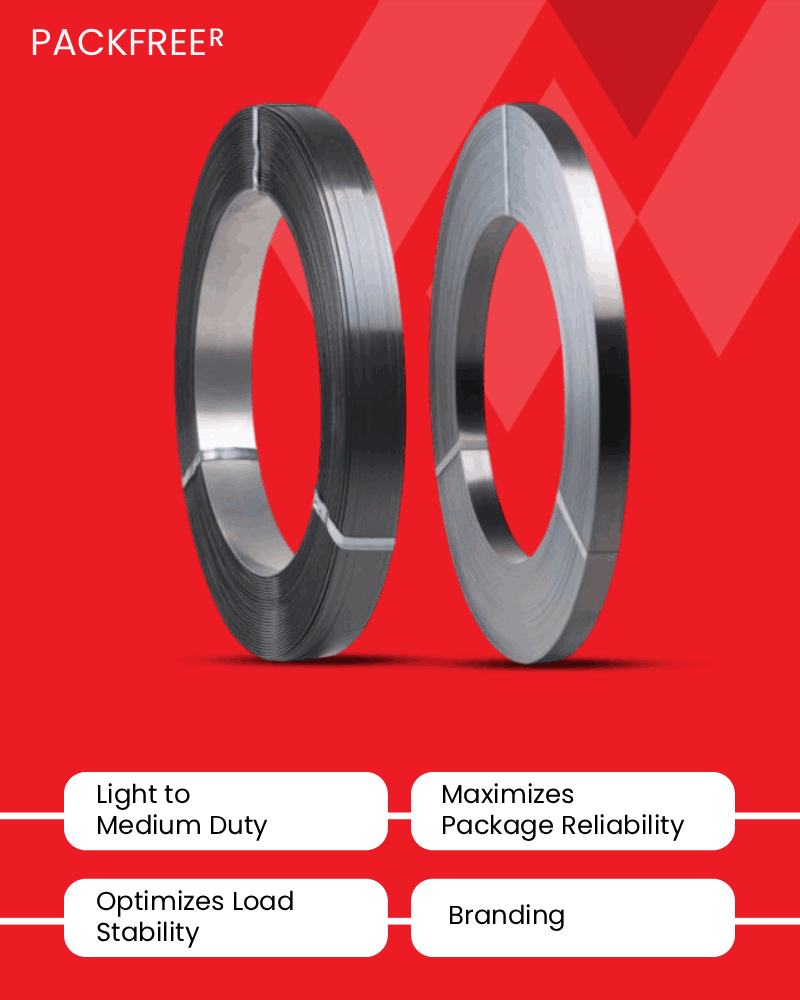

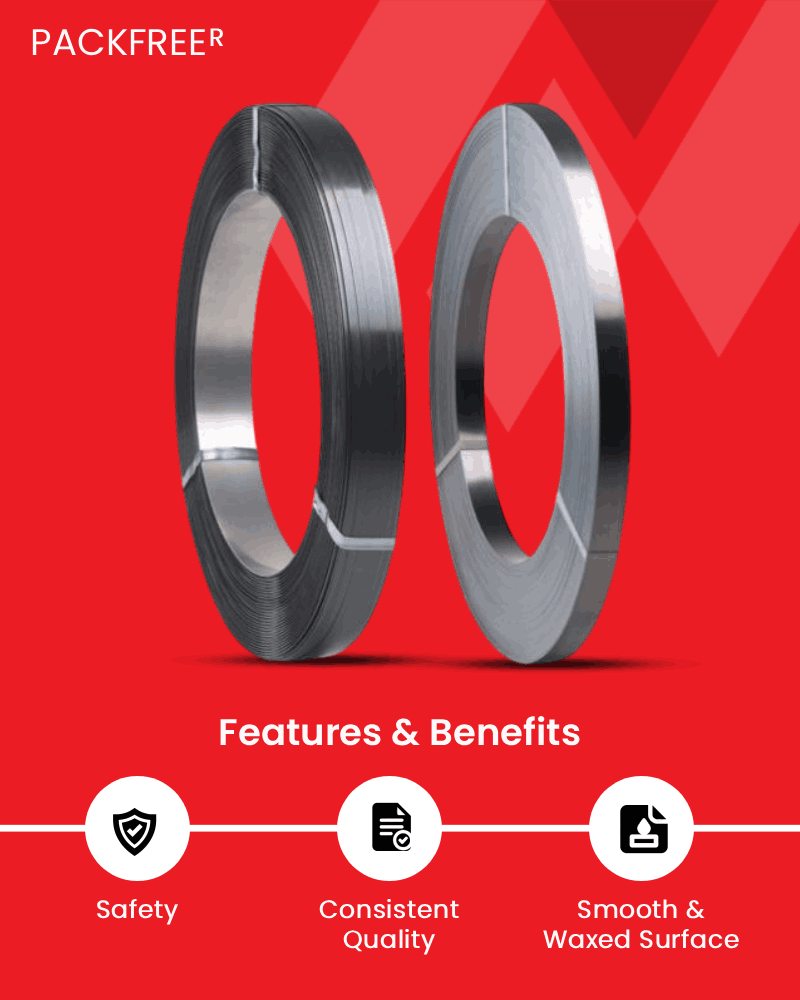

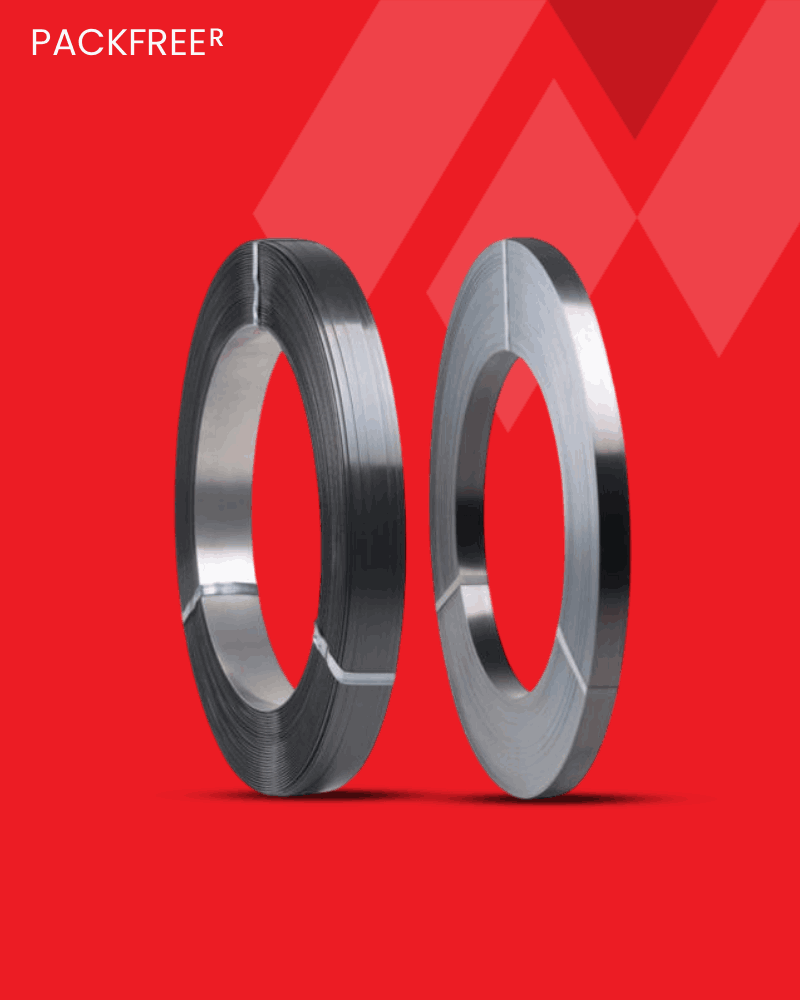

Packfree ® products are specially developed for low duty applications. These steel strappings are manufactured from carefully selected chemical compositions which offer the desired properties to the finished products and also enhancing the economic value addition (EVA). These products are commercially competitive compare to the other heavy duty grades but at the same time are a perfect matched in terms of the fit for purpose application.
| Strap Size | Breaking Load (minimum) | UTS (minimum) | Yield | Elongation | Strap Finish | Product Code | |||
|---|---|---|---|---|---|---|---|---|---|
| Width | Thickness | ||||||||
| Inch | mm | Inch | mm | Kgf (Min) | Kg/mm2 | M/kg (approx) | % | ||
| (GL-150mm) (Min.) | |||||||||
| 5/8" | 15.9 | 0.02 | 0.51 | 585 | 72 | 15.71 | 1% | Painted & Waxed | 16051P |
| 0.023 | 0.58 | 660 | 72 | 13.81 | 1% | Painted & Waxed | 16058P | ||
| 3/4" | 19.05 | 0.018 | 0.46 | 630 | 72 | 14.54 | 1% | Painted & Waxed | 19046P |
| 0.02 | 0.51 | 700 | 72 | 13.11 | 1% | Painted & Waxed | 19051P | ||
| 0.025 | 0.64 | 875 | 72 | 10.45 | 1% | Painted & Waxed | 19064P | ||
| 0.031 | 0.79 | 1125 | 72 | 8.46 | 1% | Painted & Waxed | 19079P | ||
| 1" | 25.4 | 0.031 | 0.79 | 1500 | 72 | 6.35 | 1% | Painted & Waxed | 25079P |
| 11/4" | 31.75 | 0.031 | 0.79 | 1880 | 72 | 5.08 | 1% | Painted & Waxed | 32079P |
| 11/4" | 31.75 | 0.025 | 0.64 | 1463 | 72 | 6.27 | 1% | Painted & Waxed | 32064P |
