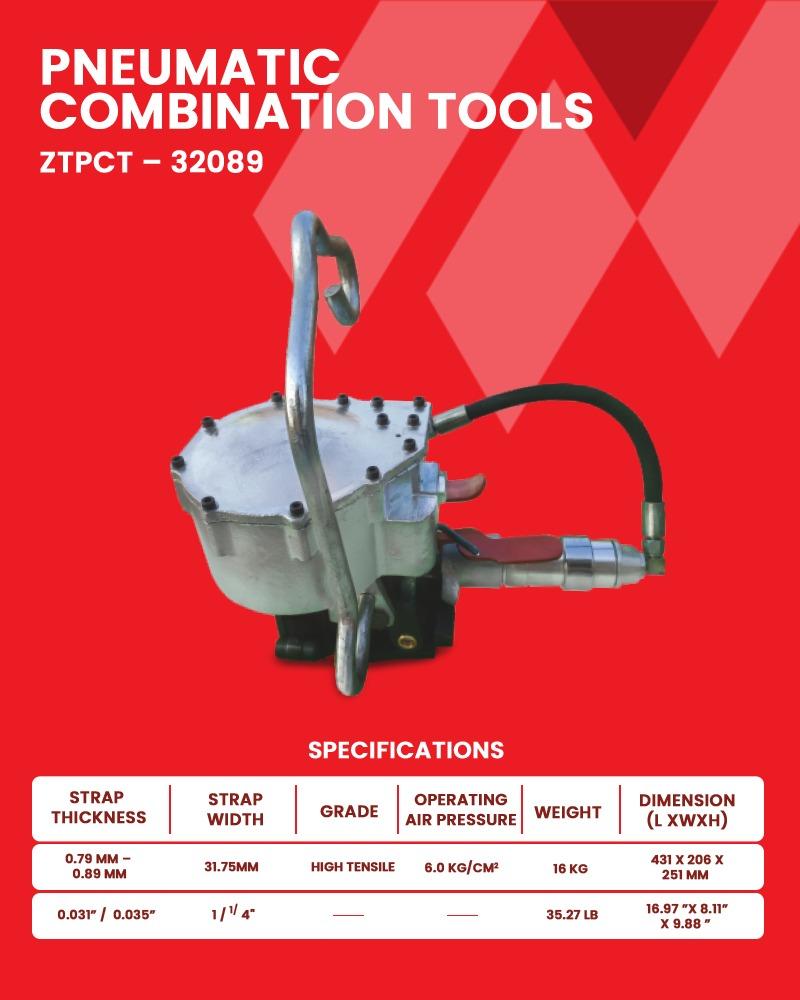

ZTPCT-32089 - PNEUMATIC COMBINATION TOOLS
The ZTPCT-32089 Pneumatic Combination Tool delivers a complete strapping solution—tensioning, sealing, and cutting in one system. Built for heavy-duty steel strapping, it is idea
The PNEUMATIC COMBINATION TOOL – Model ZTPCT-32089 is a powerful 3-in-1 steel strapping solution designed for heavy-duty industrial usage. This advanced unit combines tensioning, sealing, and cutting in a single operational setup, significantly reducing handling time and manpower compared to using three separate tools.
With an impressive achievable tension of 725 kg (1600 lb), this tool ensures secure strapping for high-tensile steel bands used in steel plants, metal processing, coil packaging, sheet bundles, and pipe bundling applications.
The tool applies a double reverse-notch (up-cut) seal, ensuring maximum joint strength and high reliability. Its cutter performs with shearing precision, while the high-alloy aluminium cylinder body reduces weight and enhances safety. Designed for stationary use, it can be suspended from a spring balancer for smooth, fatigue-free operation.
Durable, operator-friendly, and low-maintenance, the ZTPCT-32089 is the ideal choice for industries requiring high-tensile strapping efficiency.
SPECIFICATIONS
| Strap Thickness | Strap Width | Grade | Operating Air Pressure | Weight | Dimension (L × W × H) |
|---|---|---|---|---|---|
| 0.79 – 0.89 mm 0.031” / 0.035” | 31.75 mm 1 1/4" | High Tensile | 6.0 kg/cm² | 16 kg / 35.27 lb | 431 × 206 × 251 mm 16.97” × 8.11” × 9.88” |
FEATURES
- Heavy-duty pneumatic combination tool
- Performs tensioning, sealing, and cutting in one setup
- Pusher-type tensioner, achievable tension: 725 kg / 1600 lb
- Double reverse-notch (up-cut) sealer
- Cutter uses precision shearing mechanism
- Saves time & manpower compared to separate tools
- High-alloy aluminium cylinder body for strength & reduced weight
- Very user-friendly and low maintenance
- Widely used in steel plants for sheet, coil & pipe bundling
- Compatible with spring balancer for stationary operation
- Strap insertion is quick and easy
USAGE
- Industrial
- Commercial
- Steel plants
- Coil packaging
- Sheet bundling
- Pipe bundling
- Heavy-load packaging
- Manufacturing & logistics
Add your review
Your email address will not be published. Required fields are marked *
Please login to write review!
Looks like there are no reviews yet.
It performs tensioning, sealing, and cutting in one machine.
Up to 725 kg / 1600 lb.
31.75 mm (1 1/4”).
Yes, it is designed for high-tensile steel straps
Double reverse-notch (up-cut).
6.0 kg/cm².
Yes, it is widely used for coil, sheet, and pipe bundling.
No, it is low-maintenance and built for long-term use.
Yes, it supports suspension operation for easier handling.
Yes, the tool is designed for easy strap entry and smooth workflow.
